Customized Request Multi Core Electrical Wire 2 or 3 Cores Flexible Copper Rvv Cable Multi Core Electrical Wire 2 or 3 Cores Flexible Copper RVV Cable
Electrical lnstallation Cable(RVV)

▉ Application
This cable is used as control and connec↑ing cables for electrical equipment.It apply to machine tool and complete sets of equipment for fixed installation.

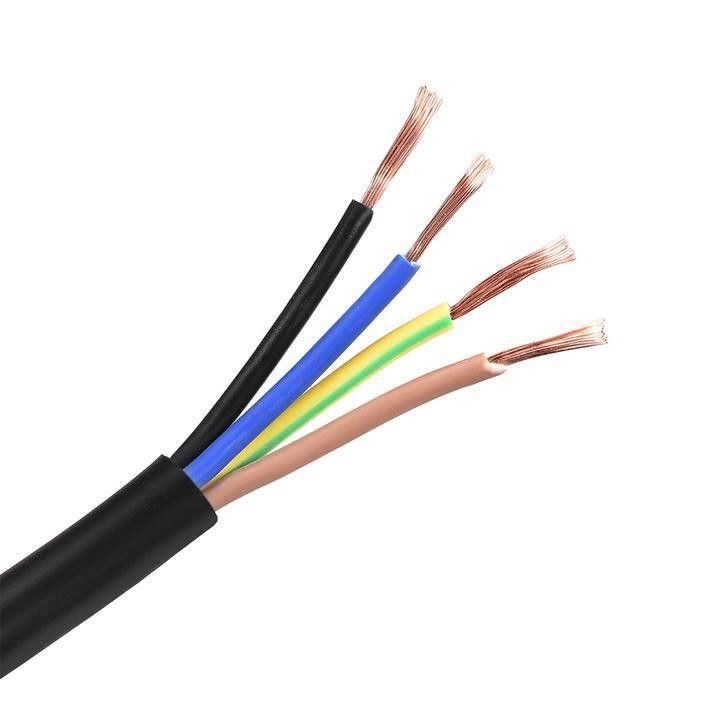

▉ Cable Construction
Conductors: flexible ultra-fine stranded copper wire
Insulation:flexible heat resistant PVC
Insulation Color:	Two core:black,white
	Three core:blue,brown,yellow/green
	Four:black,blue,brown,yellow/green
	Five core and above:black insulated wire print white font
Filler:cotton or pp filler
Jacket:flexble heat reslatant PVC mlxture
Produet reference standard:GB/T5023; JB8734
Note:Cable having more than 3 core contain yellow/green wire
▉ Product Feature
Good mechanical properties
Good capabillity of electric insulation and resistant to chemicals
Fire resistance meets IEC60332-1
▉ Cross Section




















▉ Technical data
Temperature Range	Bend: : -5℃~＋70℃
	Static : -15℃~＋70℃
Rated Voltage	CCC : 300/300V 300/500V
	IEC/VDE ＜ 1.5mm² ;300/300V
	IEC/VDE ≥ 1.5mm² ;300/500V
Test Voltage	≥0.5mm² 2500V/5min;
Insulation resistance	20℃ ≥ 10MΩ/km
Min bending radius
Fixed	6D(D=cable diameter)
Moving	15D(D=cable diameter)
Torsion angle	±90°/m
Moving:	±90°/m

▉ Product List
Spec.	Nominal OD(mm)	Copper.weight approx (kg/km)	Wight approx(kg/km)
RVV 2×0.5mm²	5.3	9	35
RVV 3×0.5mm²	5.6	14	45
RVV 4×0.5mm²	6.4	19	58
RVV 5×0.5mm²	6.9	23	68
RVV 10×0.5mm²	9.4	47	119
RVV 15×0.5mm²	11.4	70	188
RVV 20×0.5mm²	12.6	93	237
RVV 30×0.5mm²	14.7	140	331
RVV 2×0.75mm²	6.1	14	46
RVV 3×0.75mm²	6.5	21	61
RVV 4×0.75mm²	7.4	28	79
RVV 5×0.75mm²	8.0	35	93
RVV 10×0.75mm²	11.7	70	189
RVV 15×0.75mm²	13.3	105	260
RVV 20×0.75mm²	14.7	140	331
RVV 30×0.75mm²	17.2	209	467
RVV 2×1.0mm²	6.8	19	59
RVV 3×1.0mm²	7.2	28	78
RVV 4×1.0mm²	7.9	37	93
RVV 5×1.0mm²	8.6	47	111
RVV 10×1.0mm²	12.5	93	225
RVV 15×1.0mm²	14.3	140	311
RVV 20×1.0mm²	15.8	186	398
RVV 30×1.0mm²	20.7	279	664


▉ Product List
Spec.	Nominal OD(mm)	Copper.weight approx (kg/km)	Wight approx(kg/km)
RVV 2×1.5mm²	7.8	27	77
RVV 3×1.5mm²	8.3	41	103
RVV 4×1.5mm²	9.1	55	126
RVV 5×1.5mm²	10.6	68	171
RVV 10×1.5mm²	14.5	136	306
RVV 15×1.5mm²	16.6	205	428
RVV 20×1.5mm²	20.6	273	649
RVV 30×1.5mm²	23.9	409	903
RVV 2×2.5mm²	9.0	45	107
RVV 3×2.5mm²	9.6	67	146
RVV 4×2.5mm²	11.2	89	202
RVV 5×2.5mm²	12.2	111	242
RVV 10×2.5mm²	16.9	223	442
RVV 15×2.5mm²	21.6	334	729
RVV 20×2.5mm²	23.8	445	926
RVV 30×2.5mm²	27.8	668	1306
