Place of Origin:
Guangdong, China
Brand Name:
Linke
Certification:
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Armoured cables are often referred to as steel wire armoured cables, SWA cable, mains power cable, single core power cable, and multi-core booklet armoured cable.

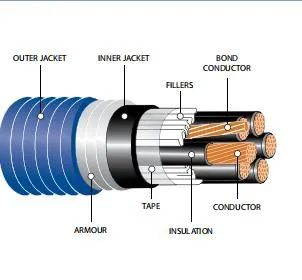

Conductor: plain stranded copper or aluminium
Insulation: materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
Bedding: a layer to create a protective barrier between the insulation and the armour.
Armour: a steel or aluminium armour provides mechanical protection to allow the cable to withstand the mechanical stresses to which it is exposed.
Sheath: the constituent parts of the cable are held together by a sheath offering a further level of protection. Black sheaths can be carbon-loaded for UV stability.
Voltage: voltage ratings of 600/1000V, 6.35/11kV and 19/33kV.
We offer a comprehensive range of BASEC-approved armoured cables, manufactured in accordance with a number of British, European and International standards including BS5467, BS6622, BS6724, BS7835, BS EN 50267, IEC 60502 and BS EN 60332-1-2 (for single core cables).
Special Features:
Armoured Copper Power Cable
1kv-10 kv xlpe armoured power cable are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.
Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Laying conditions: For laying under ground with large different altitude, be able to bear external mechanical force and moderate pulling force.
-Standards / Testing Specifications: IEC 60502-1.
Installation This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
|
Type |
Name |
Usage |
|---|---|---|
| VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
| VLV | ||
| VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
| VLY | ||
| PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force | |
| VLV22 | ||
| VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
| VLV23 | ||
| VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
| VLV32 | ||
| VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force |
| VLV33 | ||
| VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
| VLV42 | ||
| VV43 VLV43 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
| Armoured Cable Specification | |
|---|---|
| Extreme temperature range: | (-40oC to 105oC) can withstand the extremes of automotive environments |
| Armoured Cable range: | 0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands |
| High strand counts | High strand counts |
| Conductor Type | Stranded 99.99% OFC (oxygen free copper), and tin plated copper,copper coated al |
| Material | Environmentally friendly, quality, glossy material Tinned, Silver or Nickel plated copper etc. |
| Armoured Cable Colour: | Customized |
| Packing | carton packing, pallet packing , wooden / plastic reels |
•Use and installation
•Construction

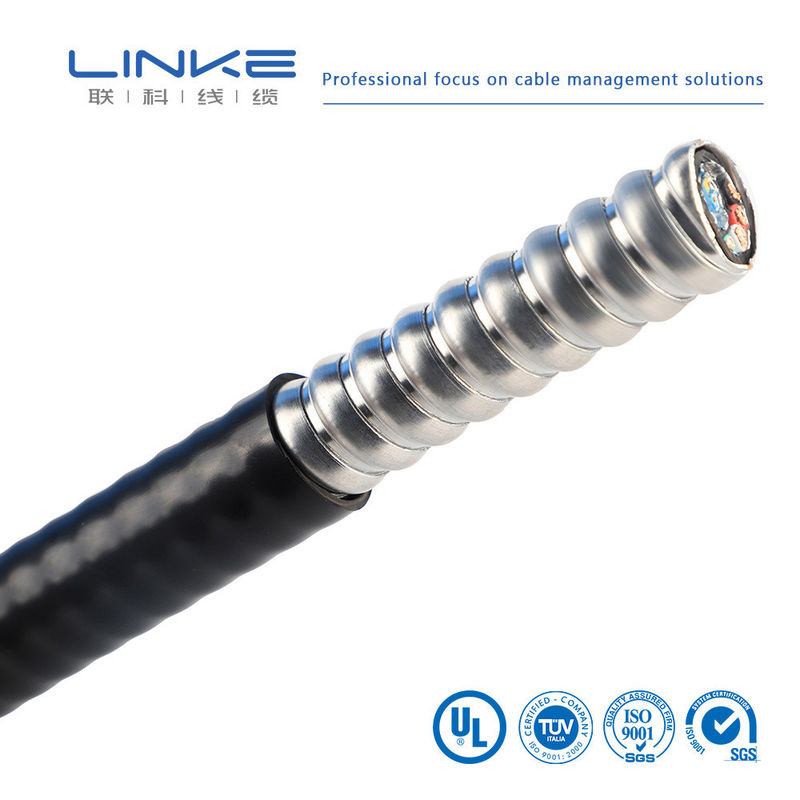

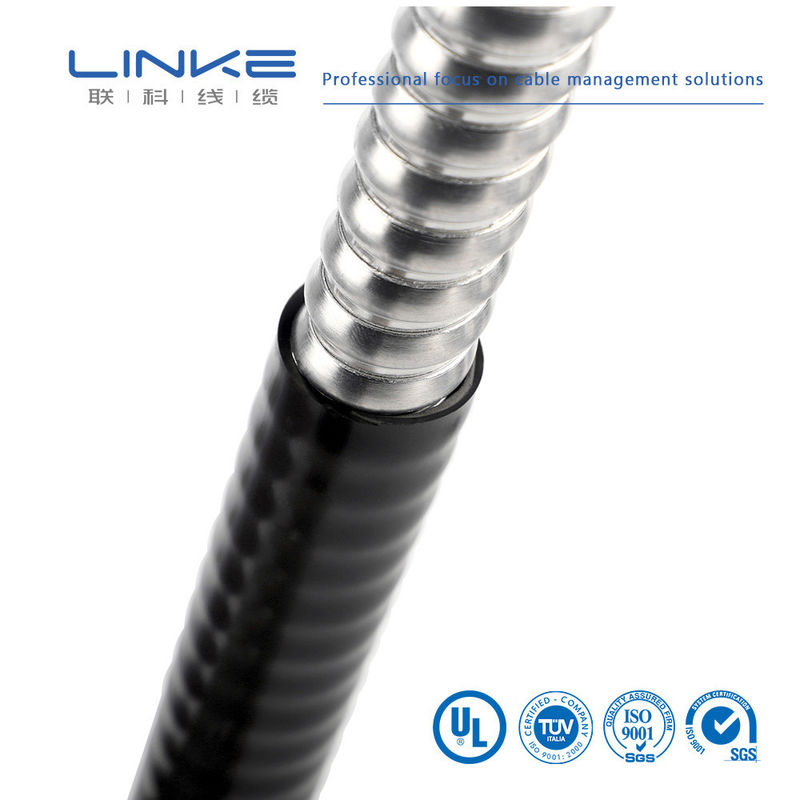

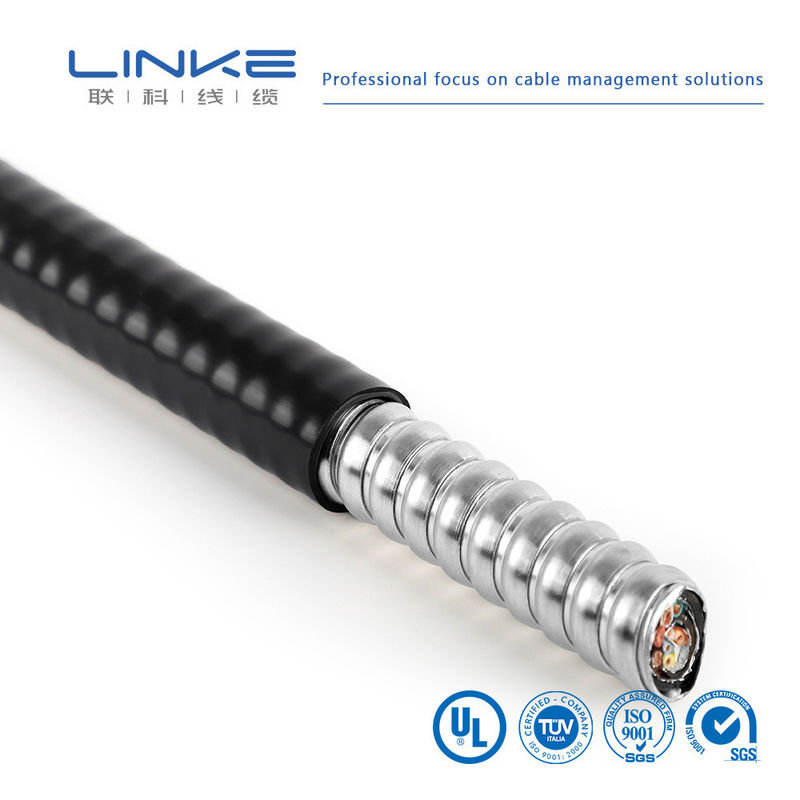

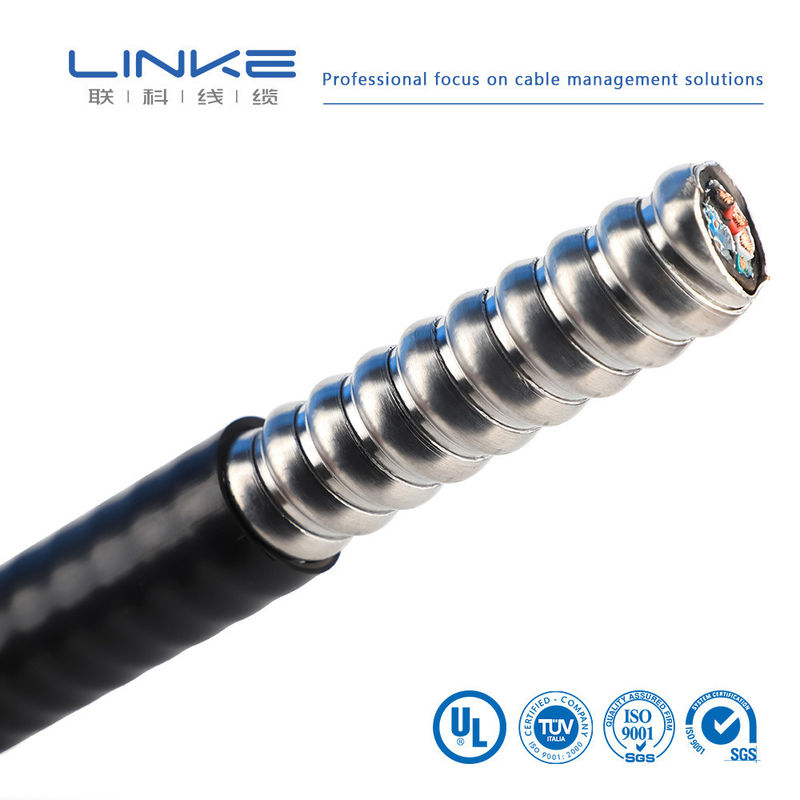

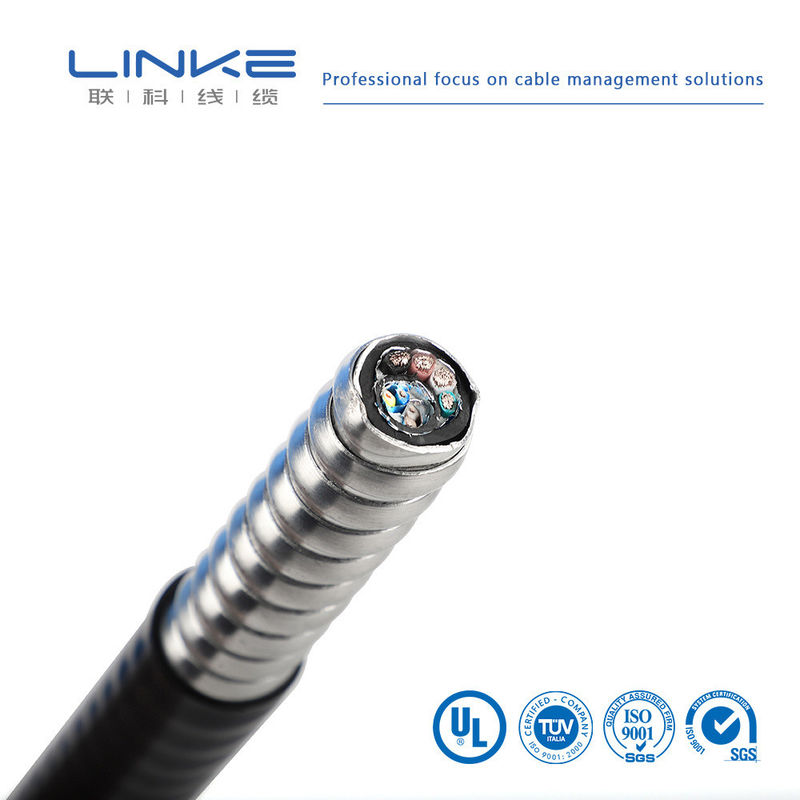

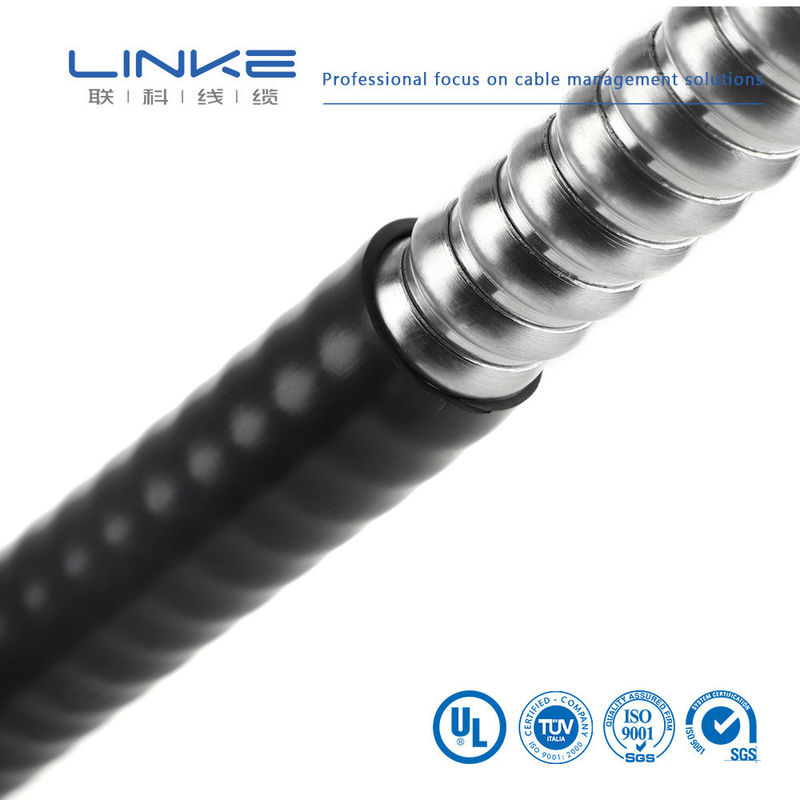

| Armor | Interlocked Aluminum Strip |
| Inner Conductor | Solid/ Stranded Copper |
| Conductor Insulation | THHN/ THWN OR XHHW-2 |
| Assembly Covering | Polypropylene Tape |
| Temperature Rating | ≤ 90 (dry); ≤ 75 (wet) |
| Grounding | Insulated Green Grounding Conductor |
| Voltage Rating | 600V |
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,
Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom
cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,
braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach
to develop better cables for customers and improve the quality of one's life.
LINKE UL CERTIFICATION
| Single-conductor, thermoplastic insulation | |||||||
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 | |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 | |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 | ||
| Multiple-conductor, thermoplastic insulation | |||||||
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| Single-conductor, thermoset insulation | |||||||
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 | |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 | ||
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 | ||
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 | ||
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
