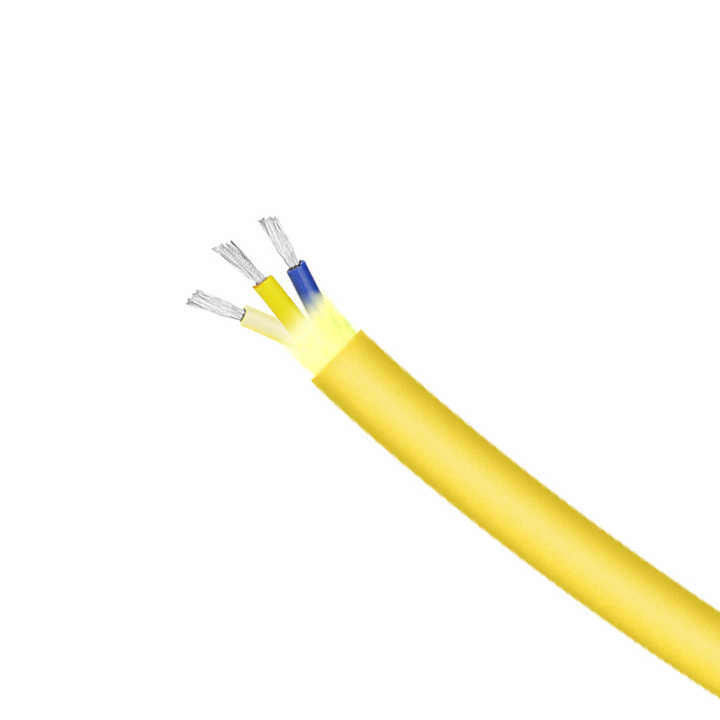

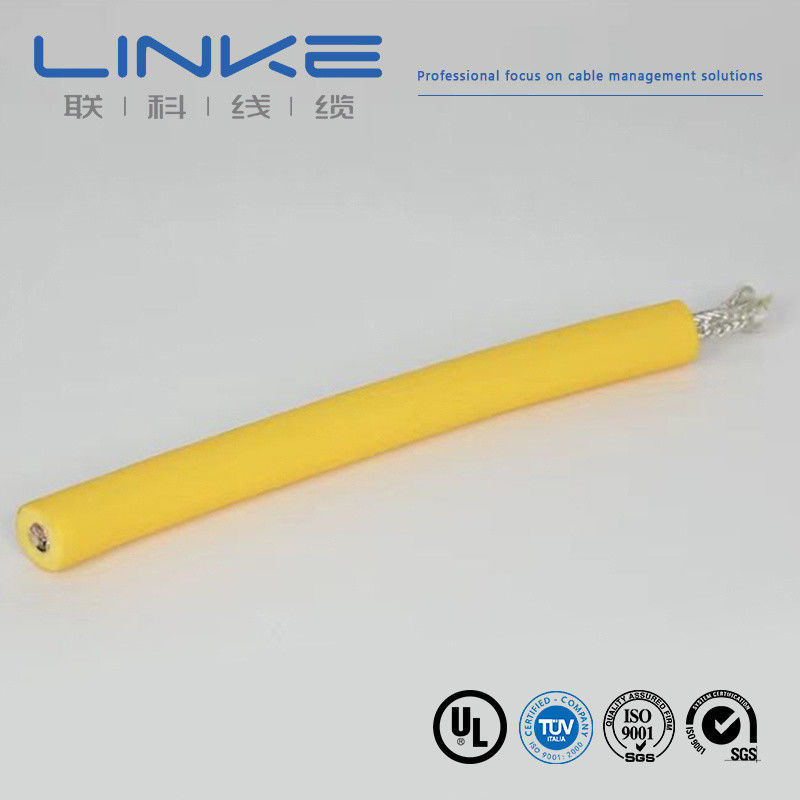

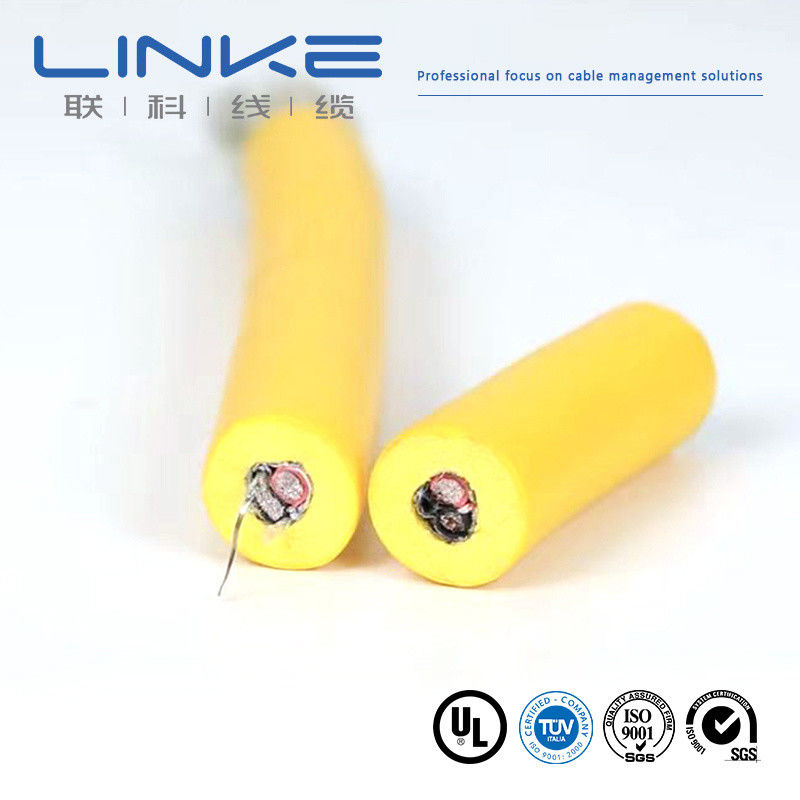

Electric wire Underwater Floating Robot Cable
Waterproofing Multicore ROV Buoyancy Floating Electrical Underwater Cable

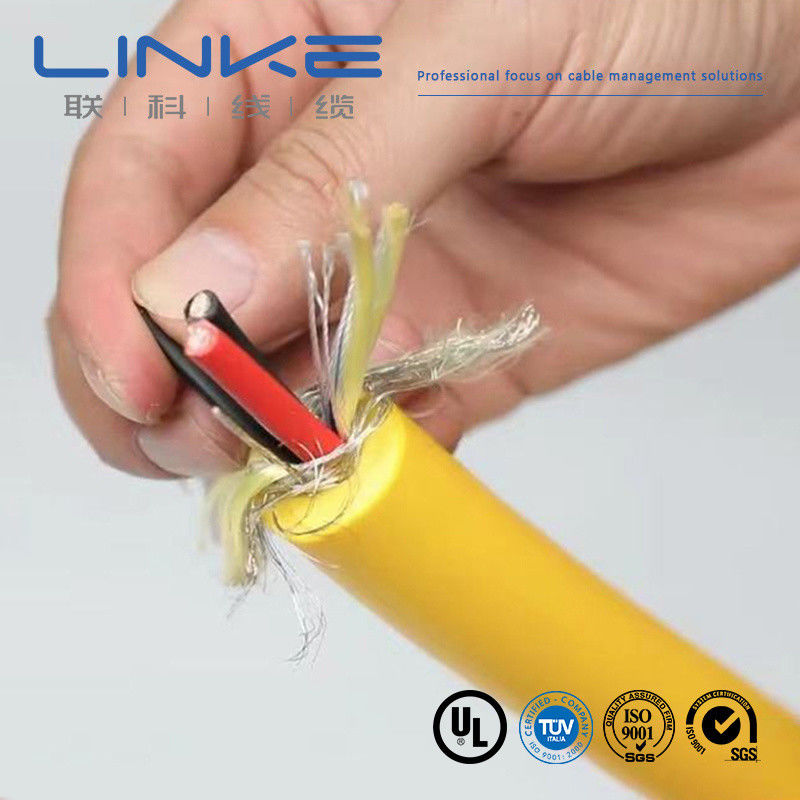

| Item | Optoelectronic hybrid cable |
| Structure | 8AWG x 2C+(26AWG x 1P+AL)+SMF(2-core single-mode fiber)+F+ non-woven fabric + BOD =24.0mm foamed TPE Sheath |
| Tensile force | 300KGF |
| transmit disctance | >40kilometers |
| Usage | underwater signal tramsmit |
| Jacket | TPE /PU |

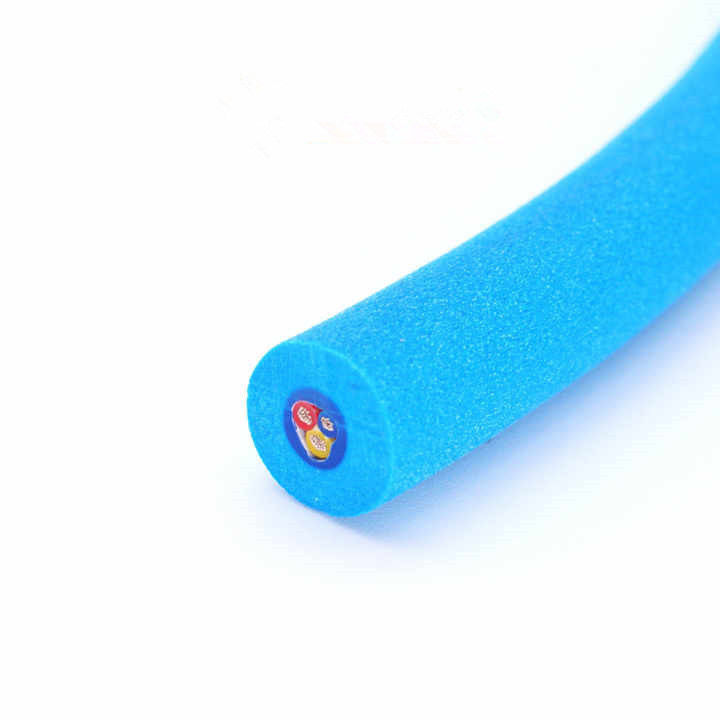

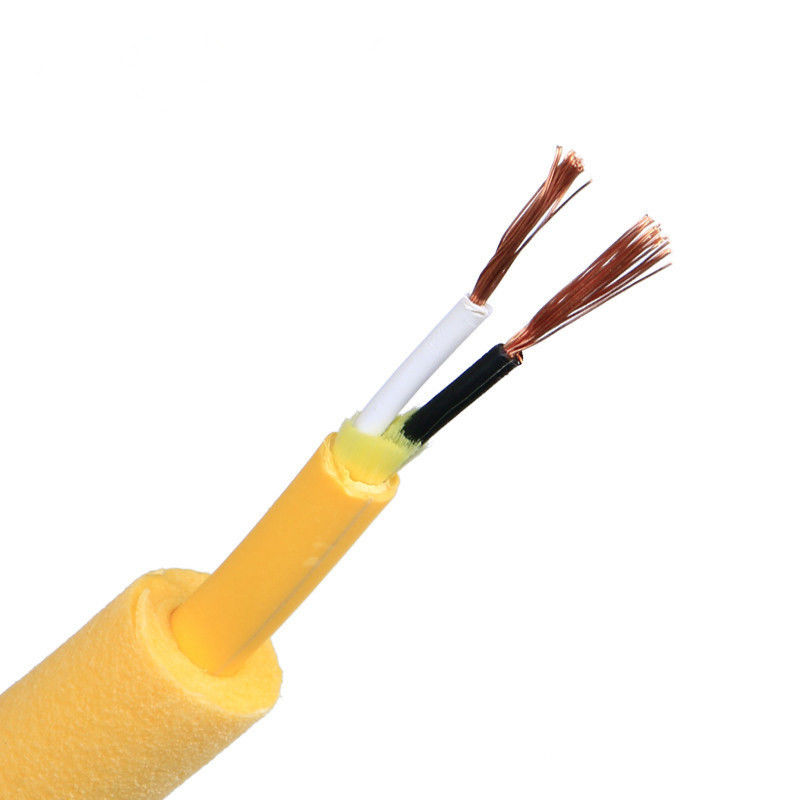

ROV zero buoyancy drag line 4-core Ethernet cable with 2-core power supply, 6-core waterproof line PUR PTFE underwater cable
Zero buoyancy drag line description:
Zero buoyancy drag cables are used as drag cables for underwater robots and unmanned underwater detectors. Due to the need to soak underwater for a long time and move more with the underwater robot, the endurance of the underwater robot is limited when working underwater. Therefore, the cable is required to be made with zero buoyancy to reduce the operating burden of the equipment underwater. In addition, the cable is required to have good long-term underwater performance and good flexibility.
Zero buoyancy drag line structure:
Application range of zero buoyancy drag line:
Zero buoyancy drag line is suitable for rivers, lakes, waves, as well as various complex marine surface and underwater environments such as underwater detection robots, submersible motors, submersibles, offshore oil exploration platforms, protection and development of marine fishery resources, detection, protection and management of marine ecological environment, etc
Electrical characteristics of zero buoyancy drag line:
Waterproof to seawater, oil, cold, corrosion, UV, flame retardant, bending, and has a long service life. It is suitable for back and forth movement installation occasions.
Temperature range for use:
Fixed installation -30 ℃ to+85 ℃
Mobile installation: -20 ℃ to+85 ℃
Bending radius:
Fixed installation: 5 x cable outer diameter (D)
Mobile installation:
When the stroke is less than 10 meters, the bending radius is 7.5 × d. When the stroke is greater than or equal to 10 meters, the bending radius is 10 × D
Product customization instructions:
Zero buoyancy drag line can be customized with various types and specifications of special purpose wires and cables according to customer requirements. Customers can provide samples or design drawings, and our company can process according to the drawings and samples
