Place of Origin:
China
Brand Name:
Linke
Certification:
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Video
Video
| Item | Optoelectronic hybrid cable |
| Structure | 8AWG x 2C+(26AWG x 1P+AL)+SMF(2-core single-mode fiber)+F+ non-woven fabric + BOD =24.0mm foamed TPE Sheath |
| Tensile force | 300KGF |
| transmit disctance | >40kilometers |
| Usage | underwater signal tramsmit |
| Jacket | TPE /PU |
The cables are mainly divided into round and flat shapes according to their appearance. As power transmission, signal transmission and control connection cables between equipment, they are widely used in offshore oil exploration, ships, ports and offshore wind power generation, underwater equipment and other fields. Due to its special materials and structure, seawater-proof cables have high reliability and durability and can adapt to harsh marine environmental conditions such as high pressure, high temperature, salt spray and sea currents.
The seawater-proof cable series products include:
● Standard high-flexibility seawater-proof cable (including power cable, signal transmission and control cable, etc.)
● Reinforced tensile and seawater-resistant umbilical cable (supports customized tensile strength)
● Highly pressure-resistant seawater-proofcable(suitable for working conditions, can be designed and produced according to underwater operating depth)
● Multi-specification floating solution for seawater-proof cable
● Comprehensive functionalcomposite seawater-proof cable (integrated with optical fiber, power cable, signal control cable, coaxial video cable, mobile network cable and air guide tube)
……

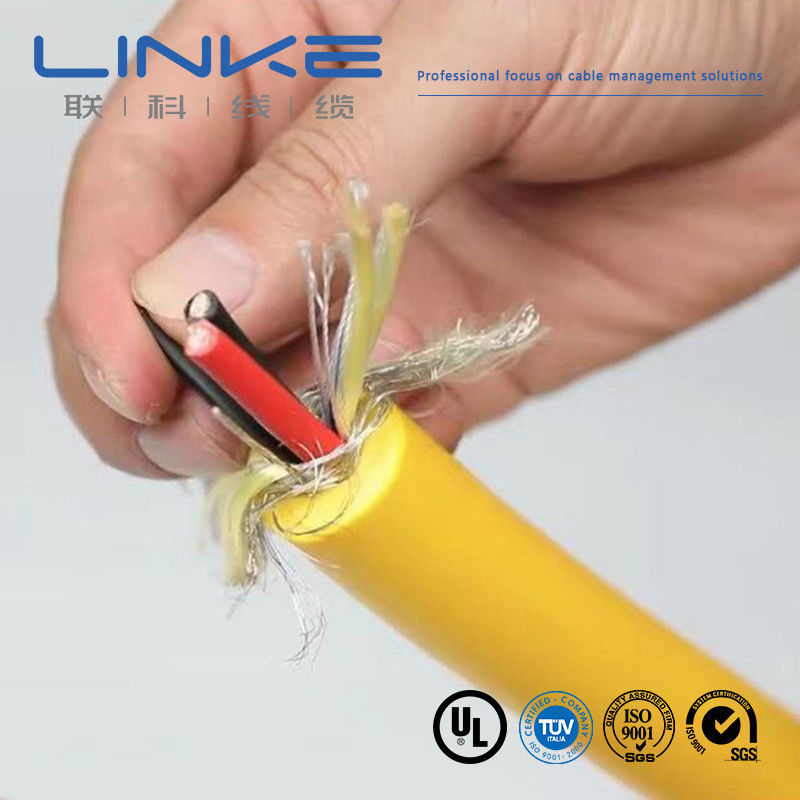

■ Basic structure of the product
Inner conductor: stranded oxygen-free bare copper wire (please specify if tinned wire is used), refer to VDE 0295 class 6/IEC 60228 class 6 standard;
Insulation layer: specially modified PVC mixture/HDPE/TPEE/TPE/ETFE, etc.;
Assembly structure: optimized cable twisting pitch to meet the requirements of underwater operation and mobility;
Integrated components: (optional) mobile optical fiber, power cable, signal control cable, coaxial video cable or mobile network cable, air duct, etc.
Tensile component: (optional) tensile steel wire rope or Kevlar fiber;
Reinforcement layer: composite Kevlar reinforcement layer;
Shielding layer: (optional) high bending resistance tinned wire braided shield, with better anti-electromagnetic interference performance;
Outer sheath: special PUR, corrosion-resistant and hydrolysis-resistant. Customized sheath color is supported
■ Technical index parameters
Working voltage: 0.6/1kV and belowTest
voltage : 2500VInsulation resistance: ≥20MΩ/km (20℃) Bending radius
---Mobile installation: 7.5*D
---Fixed installation: 4*DWorking
temperature: -40 ℃~+90℃ No harmful substances: RoHSElectromagnetic compatibility: Complies with the Electromagnetic Compatibility Directive (EMC) Flame retardant properties: Refer to VDE 0472-804 Part B test standard, and IEC 60332-1
Remark:
1. The cable cross-section, number of cores, and approximate outer diameter of the cable are not limited to those listed in the sample. Please contact our company for more specifications.
2. G = with yellow-green grounding wire, X = without yellow-green grounding wire.
3. The cable can achieve more cycles in actual use. Please contact our company for details.
4. The manufacturer supports customization and can design and produce cables that meet more special working conditions according to the application scenarios.
