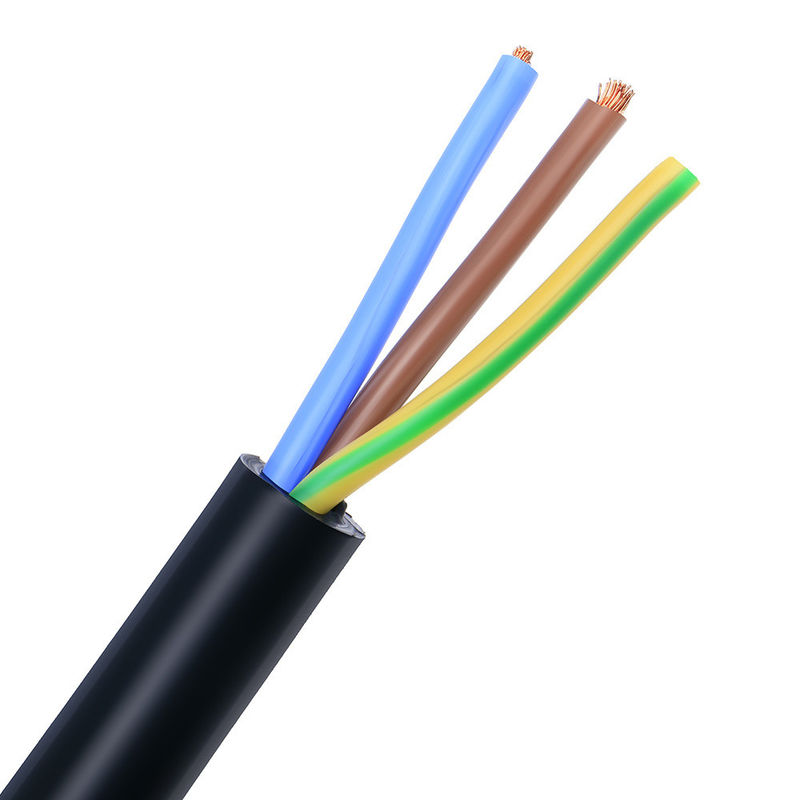

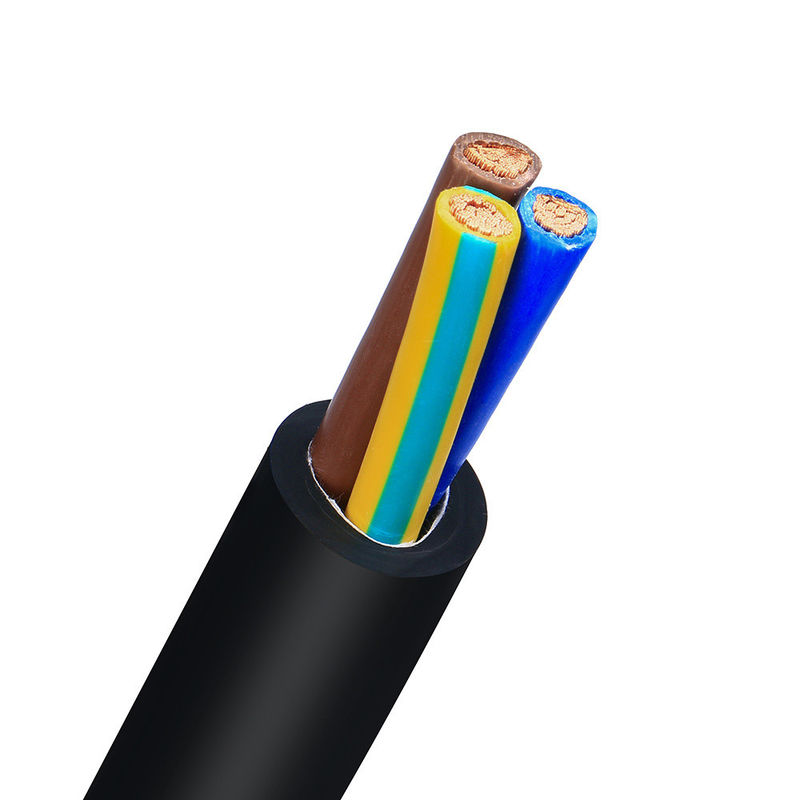

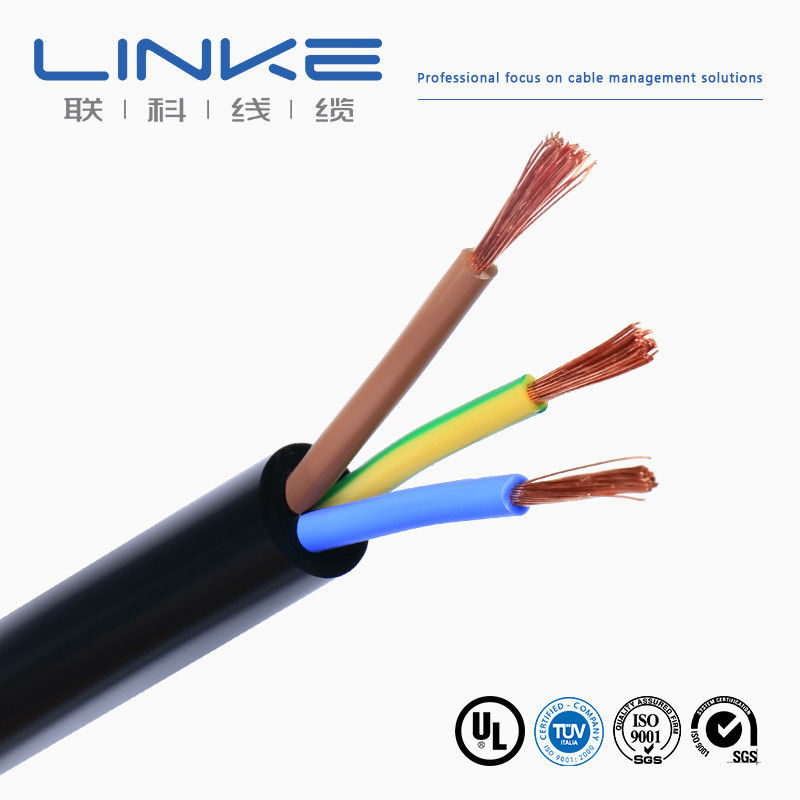

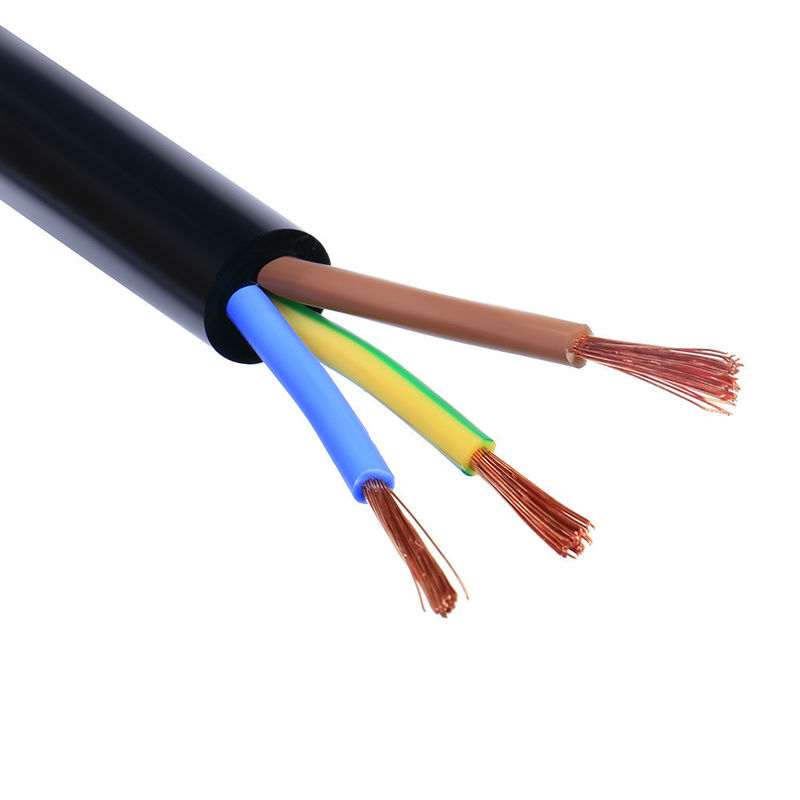

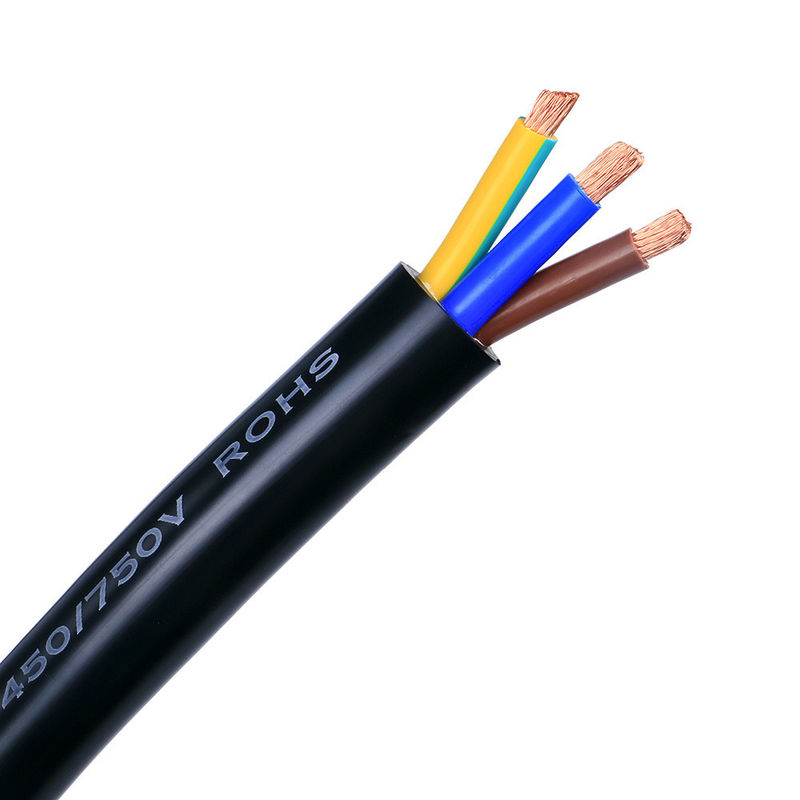

300/500v Copper Double Insulated Stranded Conductor PVC 3core 4mm RVV Electrical Flexible Cable

60V DC Pure Copper Cable

FLRY-B Pure Copper Cable

25V AC Auto Wire Cable

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

300/500v Copper Double Insulated Stranded Conductor PVC 3core 4mm RVV Electrical Flexible Cable

Product Details

Voltage:

60V DC/25V AC

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Highlight:

60V DC Pure Copper Cable

FLRY-B Pure Copper Cable

25V AC Auto Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Insulated Copper Bus bar for Automobiles And Locomotives

Get Best Price

Elevator Flat Travelling Flat Ribbon Connector Elevator Flat Cable

Get Best Price

Vitreous Fibre Conductor Armour Sheath Fiber Optic Cable for Internet Cafe

Get Best Price

Bare or Tinned Copper Elevator Cable for Transmission Machinery

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

300/500v Copper Double Insulated Stranded Conductor PVC 3core 4mm RVV Electrical Flexible Cable

apply

Ordinary PVC cables for household appliances, kitchens and offices. Used in lightweight portable appliances such as desk lamps and office equipment.

It is suitable for control signal transmission lines, electrical equipment, instruments, automation equipment, security and anti-theft alarm systems, high-rise building intercom systems, home lighting connection lines, etc.

features
Rated voltage	300/500V
Temperature grade bending	+5 °C to +70 °C
Minimum bend radius bending	8 x total diameter
conductor	Class 5 flexible copper conductors
insulation	Polyvinyl chloride (PVC)
jacket	Polyvinyl chloride (PVC)
core	2,3,4,5
color	White, black, gray, blue, yellow, etc

parameter

Seion	Conductor structure	Insulation thickness	Sheath thickness	Overall diameter		resistance	Cable weight
Numbered XMM2	No xmm	mm	mm	mm		DC.20 °C	kg/km
Numbered XMM2	No xmm	mm	mm	least	utmost	Q/km	kg/km
2x0.75	22x0.20	0.6	0.8	5.7	7.2	26	57.1
2x1	30x0.20	0.6	0.8	5.9	7.5	19.5	64
2x1.5	27x0.25	0.7	0.8	6.8	8.6	13.3	91
2x2.5	45x0.25	0.8	1	8.4	10.6	7.98	135
2x4	50x0.30	0.8	1.1	9.7	12.1	4.95	189
2x6	75x0.30	0.8	1.1	11.8	13.1	3.3	274
2x10	73x0.40	0.9	1.2	14.6	15.8	1.91	422
3x0.75	22x0.20	0.6	0.8	6	7.6	26	68.1
3x1	30x0.20	0.6	0.8	6.3	8	19.5	77.1
3x1.5	27x0.25	0.7	0.9	7.4	9.4	13.3	109
3x2.5	45x0.25	0.8	1	9.2	11.4	7.98	169
3x4	50x0.30	0.8	1.1	10.5	13.1	4.95	238
3x6	75x0.30	0.8	1.1	12.5	14.2	3.3	343
3x10	73x0.40	0.9	1.2	15.8	17.2	1.91	538
4x0.75	22x0.20	0.6	0.8	6.6	8.3	26	85.2
4x1	30x0.20	0.6	0.8	7.1	9	19.5	98
4x1.5	27x0.25	0.7	0.8	8.4	10.5	13.3	145
4x2.5	45x0.25	0.8	1.1	11	12.5	7.98	213
4x4	50x0.30	0.8	1.2	11.5	14.3	4.95	306
4x6	75x0.30	0.8	1.3	13.6	15.2	3.3	427
4x10	73x0.40	0.9	1.4	17.2	18.3	1.91	674
4x16	119x0.40	0.9	1.5	19.4	20.8	1.21	972
5x0.75	22x0.20	0.6	0.8	7.4	9.3	26	101
5x1	30x0.20	0.6	0.9	7.8	9.8	19.5	125
5x1.5	27x0.25	0.7	1.1	9.3	11.6	13.3	176
5x2.5	45x0.25	0.8	1.2	11.2	13.9	7.98	261
5x4	50x0.30	0.8	1.3	13	16.1	4.95	375
5x6	75x0.30	0.8	1.4	15.6	16.8	3.3	524
5x10	73x0.40	0.9	1.5	18.2	20.3	1.91	831
5x16	119x0.40	0.9	1.6	22.3	23.2	1.21	1170

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable.

Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable,

medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer

approach to develop better cables for customers and improve the quality of one's life.

We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.

Single-conductor, thermoplastic insulation
1007	1330	1333	1591	1723	10064	10369
1015	1331	1569	1592	1901	10070	10483
1185	1332	1577	1672	10012	10269
Multiple-conductor, thermoplastic insulation
2095	2129	2468	2586	2725	20233	20280	20963
2103	2463	2517	2587	2835	20276	20549	21198
2104	2464	2576	2661	2919	20279	20886	21664
Single-conductor, thermoset insulation
3075	3173	3320	3386	3530	3689	30005
3123	3212	3321	3398	3577	3702
3132	3266	3331	3512	3644	3817
3135	3271	3385	3529	3674	3886

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum order quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
