Place of Origin:
Guangdong, China
Brand Name:
Linke
Certification:
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

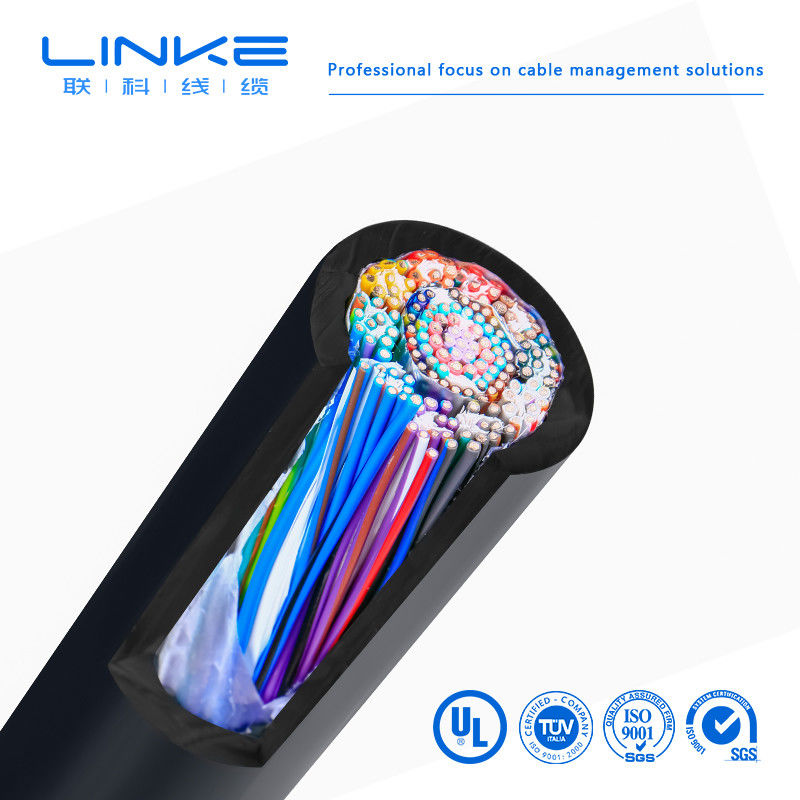

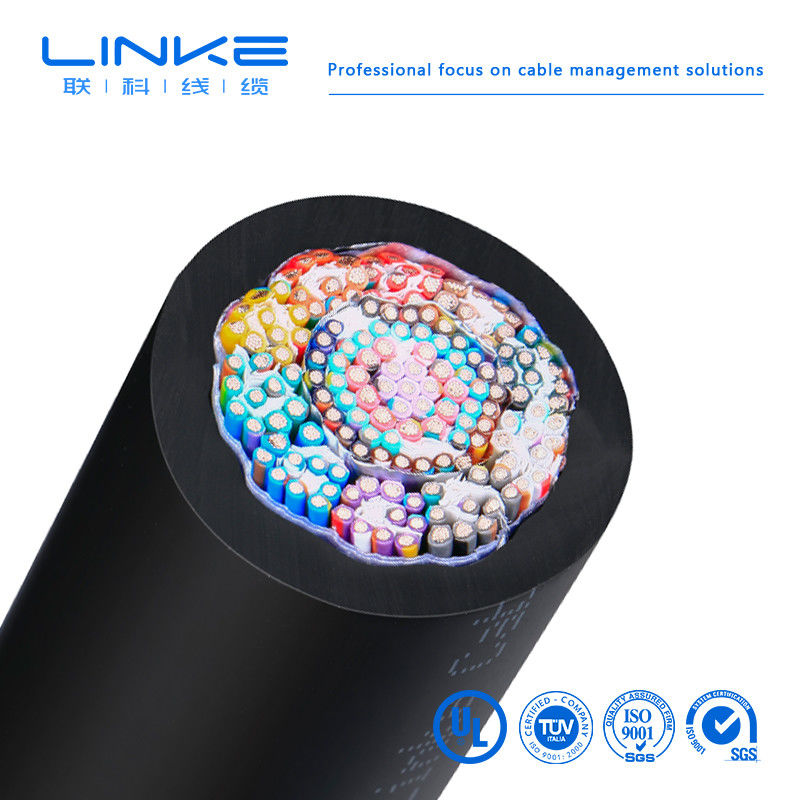

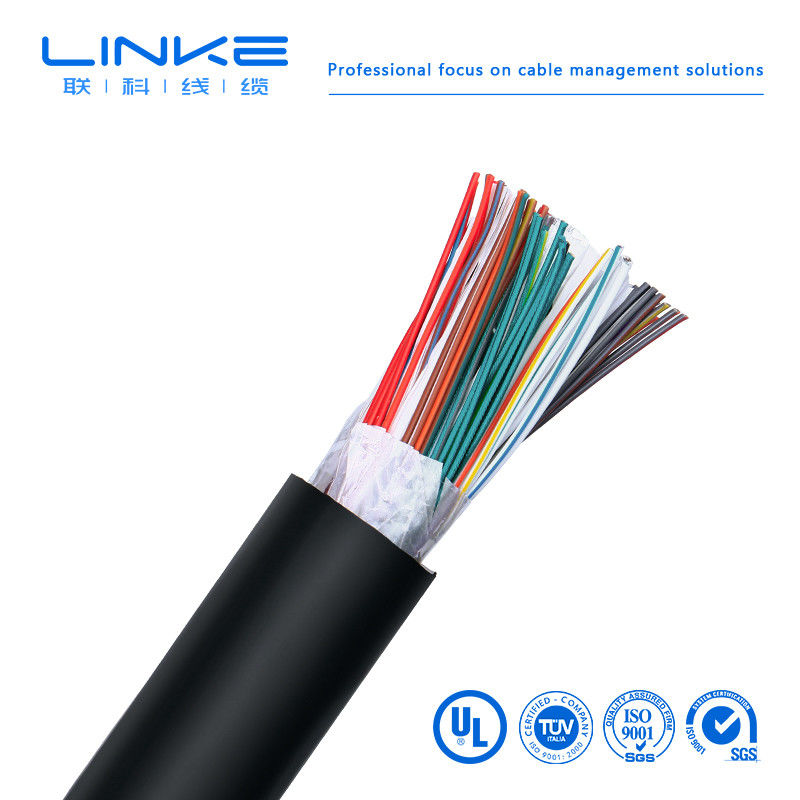

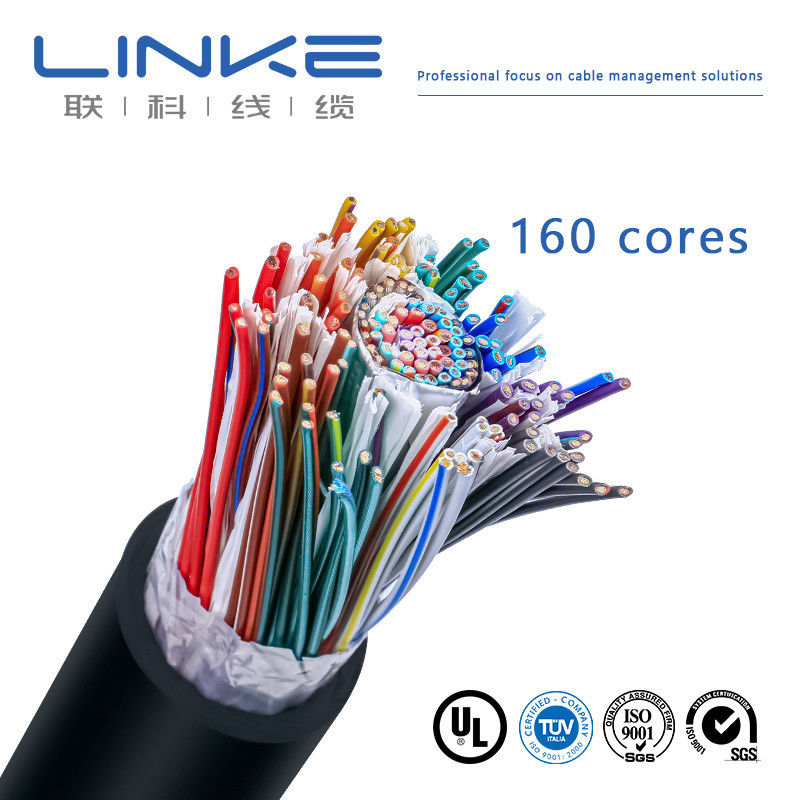

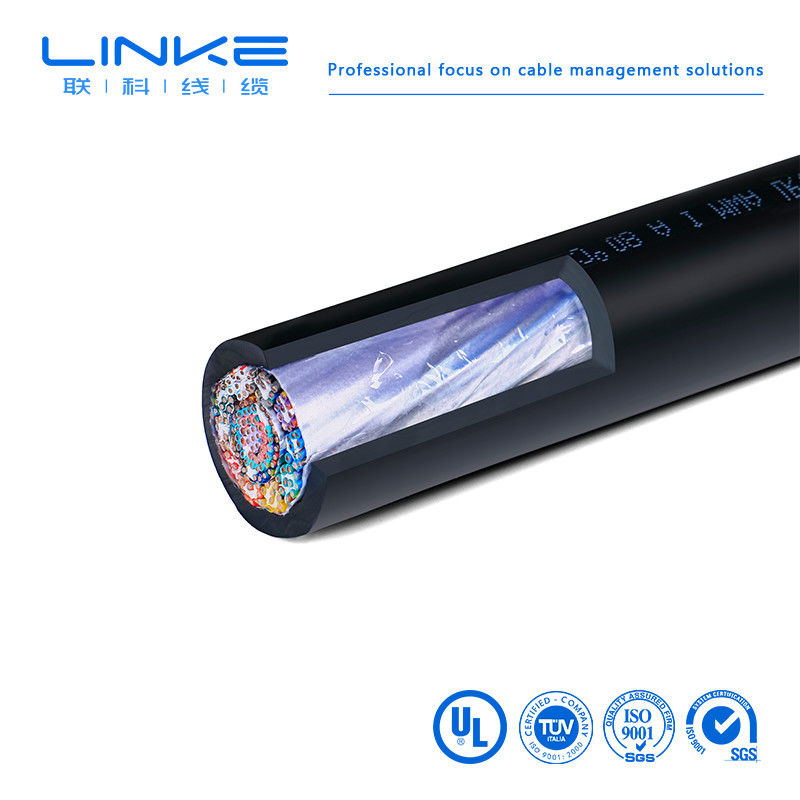

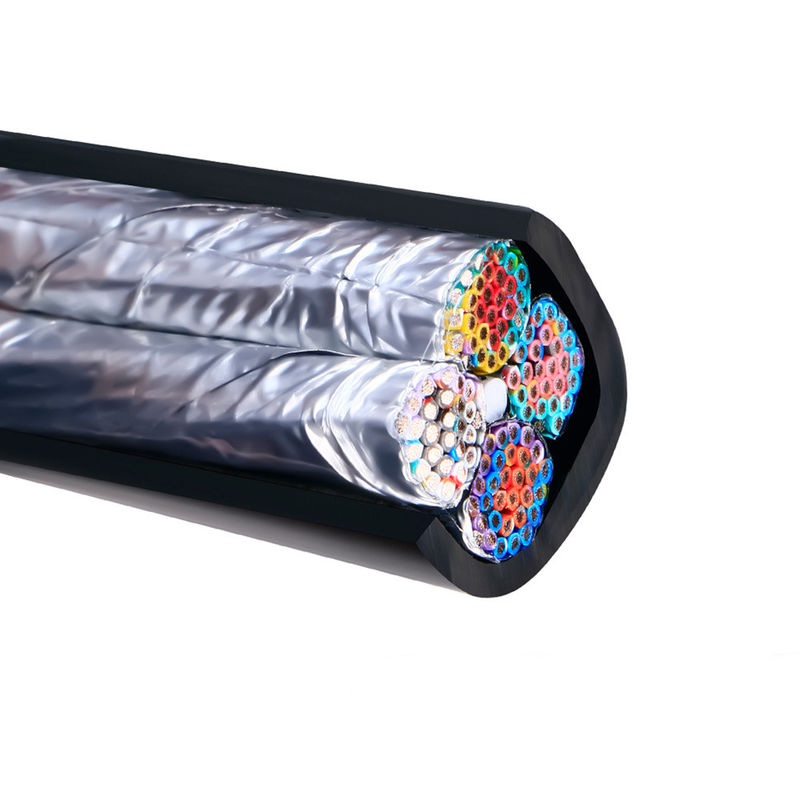

Silicone rubber power cable
1. Product features and uses
This product is suitable for fixed power transmission lines or connecting cables for mobile electrical appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance and corrosive gas resistance, waterproofness, etc. The cable structure is soft and convenient for radiation. The electrical performance is stable under high temperature (cold) environment, the anti-aging performance is outstanding, and the service life is long. It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.
2. Product Implementation Standards
Q/HHTZH001.1
Flame retardant and fire resistance test is carried out in accordance with GB12666-90 requirements
Three: Usage characteristics
1. AC rated voltage: U0/U 0.6/1KV
Maximum operating temperature: 180°C
Minimum ambient temperature: fixed installation -60℃
2. The temperature for cable installation should not be lower than -25℃.
3. Allowable bending radius of the cable: The minimum bending radius of the cable is 10 times the outer diameter of the cable
Four: Basic model and name
Table 1
|
model |
Product Name |
|
YGC |
Silicone rubber insulated silicone rubber sheathed power cable |
|
YGCR |
Silicone rubber insulated silicone rubber sheathed mobile power flexible cable |
|
YGCP |
Silicone rubber insulated silicone rubber sheathed copper braided shielded power cable |
|
YGC22 |
Silicone rubber insulated silicone rubber sheathed steel tape armored power cable |
|
JGG |
Silicone rubber insulated silicone rubber sheathed installation wire |
|
JGGR |
Silicone rubber insulated silicone rubber sheathed mobile installation soft wire |
|
JGGP |
Silicone rubber insulation, silicone rubber sheath, copper braided shield installation wire |
|
JHXG |
Silicone rubber insulated motor lead wire |
Note: For flame-retardant silicone rubber cables, add ZR before the model number, and the copper wire in the conductor core can be tinned.
V. Code name and meaning
Table 2
|
Code |
Code meaning |
|
AND |
Series code (mobile flexible cable) |
|
G |
Silicone Rubber |
|
C |
Heavy |
|
22 |
Steel belt armor |
|
P |
Copper braided shield |
|
R |
Stranded conductor |
|
J |
Motor lead wire |
6. Main technical indicators
1. For the DC resistance of finished cable conductors (R type) (in accordance with GB3956), refer to Table 1 and Table 2 in Appendix A.
2. Insulation resistance at 20℃ is not less than 100MΩ/KM
3. The finished cable will not break down when subjected to an AC 50HZ 3.5KV/5min voltage test.
7: Basic cable specifications and structural parameters
|
Wire core*nominal cross section(mm2) |
Conductor structure (number of roots * diameter) (B/R) mm |
Cable maximum outer diameter (mm) |
Reference weight (kg/km) |
||
|
YGC JGGF |
YGCR JGGFR |
YGCR JGGFR |
YGC22 JGG22 |
||
|
1*1.5 |
19*0.32/48*0.20 |
3.2 |
3.5 |
27.5 |
|
|
1*2.5 |
19*0.41/51*0.25 |
3.7 |
3.9 |
38.6 |
|
|
1*4 |
19*0.52/82*0.25 |
4.6 |
5.2 |
55.5 |
|
|
1*6 |
19*0.65/123*0.25 |
5.6 |
6.5 |
77.7 |
|
|
1*10 |
48*0.52/204*0.25 |
7.2 |
7.8 |
132 |
|
|
1*16 |
75*0.52/323*0.25 |
8.2 |
9.0 |
188 |
|
|
1*25 |
108*0.52/513*0.25 |
10.2 |
11.0 |
312 |
|
|
1*35 |
108*0.65/722*0.25 |
112 |
12.0 |
408 |
|
|
1*50 |
10*2.52/1026*0.25 |
13.5 |
14.5 |
554 |
|
|
1*70 |
19*2.16/1406*0.25 |
16.5 |
17.5 |
762 |
|
|
1*95 |
19*2.52/486*0.50 |
19.0 |
20.5 |
1045 |
|
|
1*120 |
24*2.52/608*0.50 |
20.0 |
22.0 |
1281 |
|
|
1*150 |
30*2.52/760*0.50 |
21.0 |
24.2 |
1612 |
|
|
1*185 |
37*2.52/945*0.50 |
25.0 |
28.0 |
1981 |
|
|
2*2.5 |
7*0.68/51*0.25 |
10.5 |
11.2 |
158 |
272 |
|
2*4 |
19*0.52/82*0.25 |
12 |
13.2 |
210 |
347 |
|
2*6 |
19*0.65/123*0.25 |
14.0 |
15.3 |
263 |
407 |
|
2*10 |
7*1.37/204*0.25 |
17.8 |
18.9 |
394 |
562 |
|
2*16 |
7*1.70/323*0.25 |
20.0 |
21.2 |
540 |
724 |
|
2*25 |
7*2.15/513*0.25 |
23.0 |
24.5 |
794 |
828 |
|
2*35 |
7*2.52/722*0.25 |
25.7 |
26.3 |
1037 |
1037 |
|
2*50 |
10*2.52/1026*0.25 |
26.0 |
27.5 |
1236 |
1385 |
|
2*70 |
19*2.16/1406*0.25 |
27.0 |
28.9 |
1647 |
1792 |
|
2*95 |
19*2.52/486*0.50 |
32.0 |
33.9 |
2189 |
2654 |
|
2*120 |
24*2.52/608*0.50 |
45.0 |
48.0 |
2640 |
3180 |
|
2*150 |
30*2.52/760*0.50 |
52.0 |
57.0 |
3280 |
3920 |
|
2*185 |
37*2.52/945*0.50 |
60.0 |
65.0 |
4006 |
4768 |
|
3*1.5 |
7*0.52/48*0.20 |
9.7 |
10.7 |
150 |
291 |
|
3*2.5 |
7*0.68/51*0.25 |
11.7 |
12.2 |
196 |
342 |
|
3*4 |
19*0.52/82*0.25 |
12.6 |
13.5 |
274 |
444 |
|
3*6 |
19*0.65/123*0.25 |
14.8 |
16.2 |
350 |
531 |
|
3*10 |
7*1.37/204*0.25 |
20.0 |
22.0 |
539 |
737 |
|
3*16 |
7*1.70/323*0.25 |
22.0 |
24.5 |
740 |
972 |
|
3*25 |
7*2.15/513*0.25 |
25.3 |
27.0 |
1139 |
1372 |
|
3*35 |
7*2.52/722*0.25 |
28.0 |
31.5 |
1480 |
1729 |
|
3*50 |
10*2.52/1026*0.25 |
32.0 |
37.5 |
1900 |
2405 |
|
3*70 |
19*2.16/1406*0.25 |
41.0 |
50.0 |
4061 |
3087 |
|
3*95 |
19*2.52/486*0.50 |
45.0 |
55.0 |
997 |
4003 |
|
3*120 |
24*2.52/608*0.50 |
50.0 |
60.0 |
4060 |
4887 |
|
3*150 |
30*2.52/760*0.50 |
60.0 |
65.0 |
5197 |
2995 |
|
3*185 |
37*2.52/945*0.50 |
65.0 |
70.0 |
6279 |
7262 |
|
3*4+1*2.5 |
19*0.52/82*0.25 |
14.5 |
15.5 |
320 |
481 |
|
3*6+1*4 |
19*0.65/123*0.25 |
16.2 |
17.8 |
423 |
597 |
|
3*10+1*6 |
7*1.37/204*0.25 |
21.0 |
23.0 |
630 |
827 |
|
3*16+1*10 |
7*1.70/323*0.25 |
23.0 |
25.0 |
888 |
1255 |
|
3*25+1*16 |
7*2.15/513*0.25 |
27.0 |
29.0 |
1375 |
1578 |
|
3*35+1*16 |
7*2.52/722*0.25 |
32.3 |
35.0 |
1690 |
1927 |
|
3*50+1*25 |
10*2.52/1026*0.25 |
36.0 |
40.0 |
2175 |
2760 |
|
3*70+1*35 |
19*2.16/1406*0.25 |
40.0 |
44.0 |
2950 |
3546 |
|
3*95+1*50 |
19*2.52/486*0.50 |
46.0 |
52.0, , , , |
3950 |
4670 |
|
3*120+1*70 |
24*2.52/608*0.50 |
51.0 &, amp;, amp;, lt;, /TD> |
55.0 |
4800 |
5745 |
|
3*150+1*70 |
30*2.52/760*0.50 |
56.0 |
60.0 |
5810 |
6862 |
|
3*185+1*95 |
37*2.52/945*0.50 |
66.0 |
70.0 |
7200 |
8394 |
|
4*4 |
19*0.52/82*0.25 |
14.2 |
16.2 |
352 |
515 |
|
4*6 |
19*0.65/123*0.25 |
17.1 |
19.0 |
450 |
629 |
|
4*10 |
7*1.37/204*0.25 |
22.1 |
24.0 |
672 |
881 |
|
4*16 |
7*1.70/323*0.25 |
24.5 |
26.5 |
952 |
1176 |
|
4*25 |
7*2.15/513*0.25 |
27.0 |
31.5 |
1476 |
1673 |
|
4*35 |
7*2.52/722*0.25 |
33.0 |
35.5 |
1876 |
2142 |
|
4*50 |
10*2.52/1026*0.25 |
39.0 |
41.0 |
2392 |
2982 |
|
4*70 |
19*2.16/1406*0.25 |
41.0 |
44.0 |
3300 |
3871 |
|
4*95 |
19*2.52/486*0.50 |
47.0 |
50.0 |
4300 |
5094 |
|
4*120 |
24*2.52/608*0.50 |
49.0 |
54.0 |
5380 |
6187 |
|
4*150 |
30*2.52/760*0.50 |
56.0 |
60.0 |
6750 |
7596 |
|
4*185 |
37*2.52/945*0.50 |
68.0 |
72.0 |
8190 |
9194 |
|
The structural parameters of the five-core equal-section cables and 3+2 structure cables produced by our company are not included in this table. |
|||||
| Single-conductor, thermoplastic insulation | |||||||
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 | |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 | |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 | ||
| Multiple-conductor, thermoplastic insulation | |||||||
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| Single-conductor, thermoset insulation | |||||||
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 | |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 | ||
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 | ||
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 | ||
