Place of Origin:
Guangdong, China
Brand Name:
Linke
Certification:
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

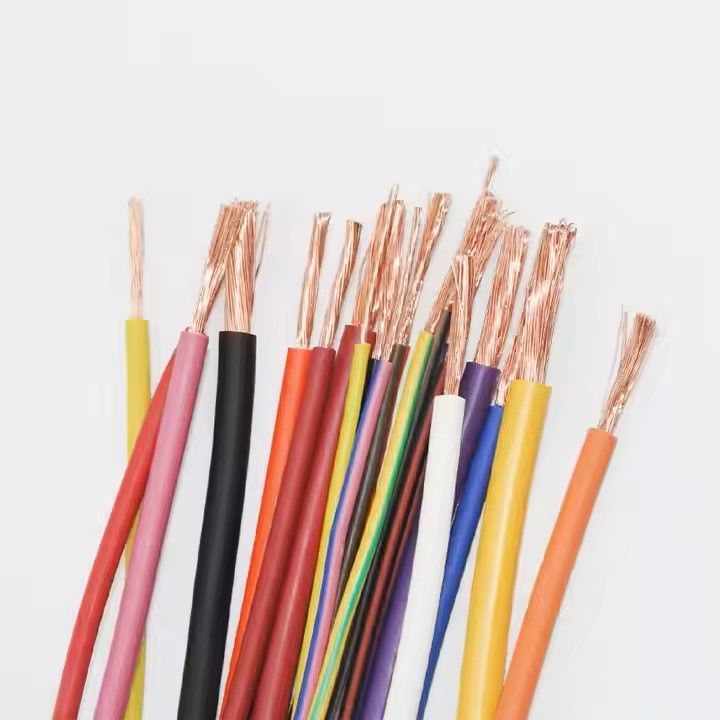

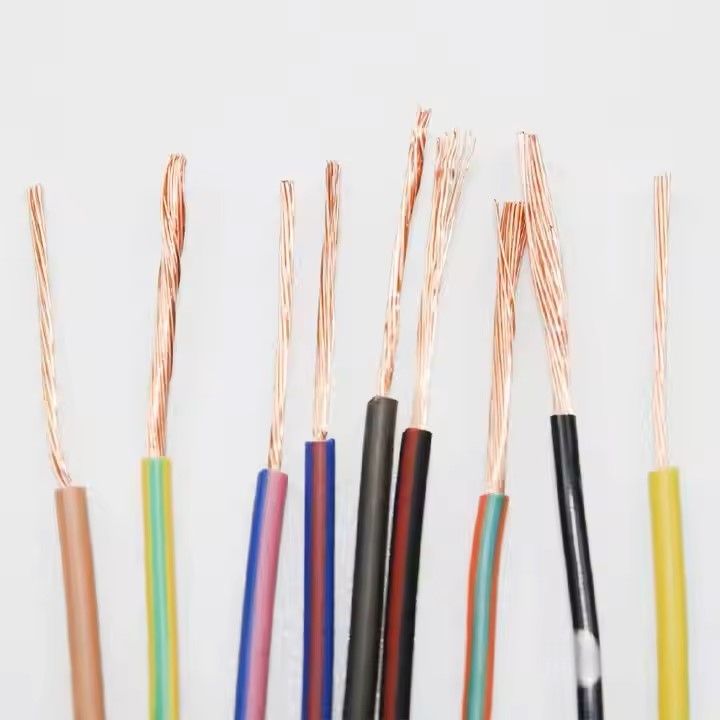

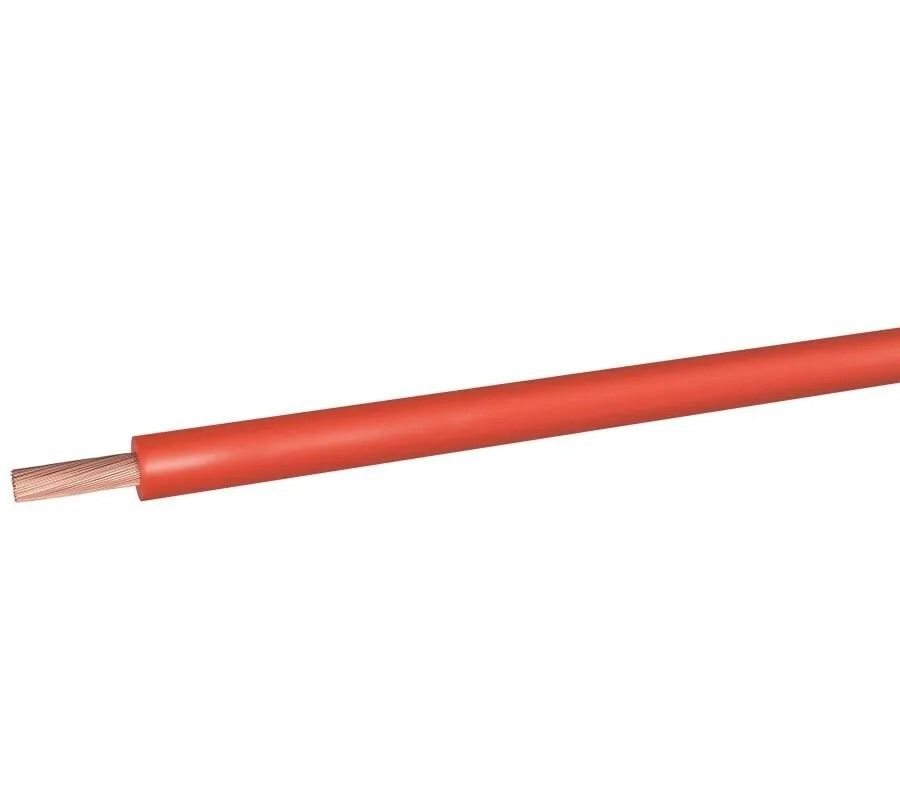

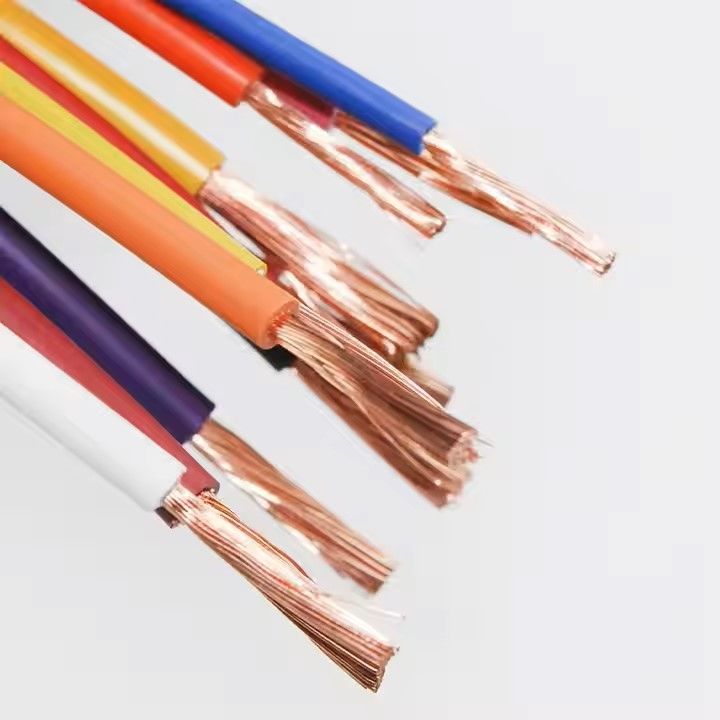

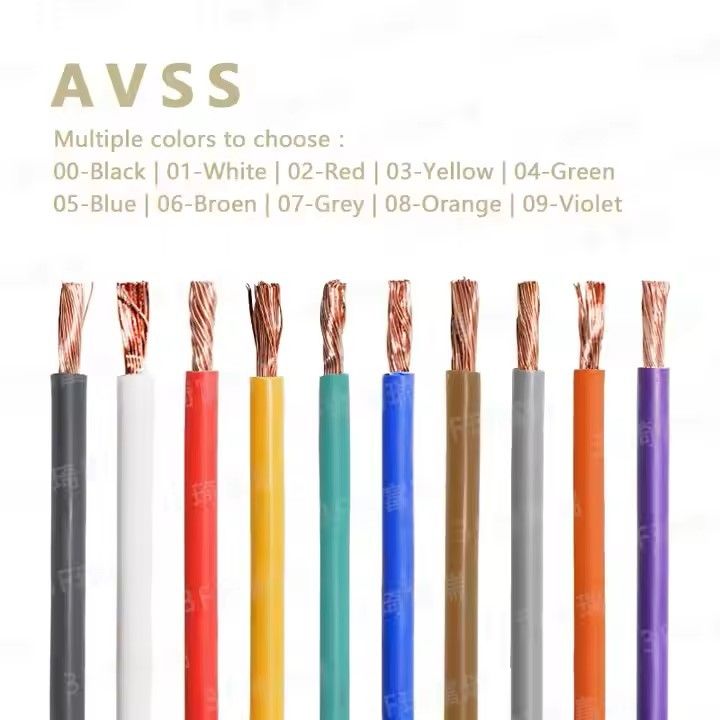

AV AVS AVF AVSS 0.5mm 0.75mm 0.85mm 1.25mm automotive wires
PVC automotive cable
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JIS C 3102/JIS C3406.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JIS C3406.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.6 | 2.2 | 2.4 |
| 0.85 | 11 | 0.32 | 1.2 | 20.8 | 0.6 | 2.4 | 2.6 |
| 1.25 | 16 | 0.32 | 1.5 | 14.3 | 0.6 | 2.7 | 2.9 |
| 2 | 26 | 0.32 | 1.9 | 8.81 | 0.6 | 3.1 | 3.4 |
| 3 | 41 | 0.32 | 2.4 | 5.59 | 0.7 | 3.8 | 4.1 |
| 5 | 65 | 0.32 | 3.0 | 3.52 | 0.8 | 4.6 | 4.9 |
| 8 | 50 | 0.45 | 3.7 | 2.32 | 0.9 | 5.5 | 5.8 |
| 10 | 63 | 0.45 | 4.5 | 1.84 | 1.0 | 6.5 | 6.9 |
| 15 | 84 | 0.45 | 4.8 | 1.38 | 1.1 | 7.0 | 7.4 |
| 0.5f | 20 | 0.18 | 1.0 | 36.7 | 0.6 | 2.2 | 2.4 |
| 0.75f | 30 | 0.18 | 1.2 | 24.4 | 0.6 | 2.4 | 2.6 |
| 1.25f | 50 | 0.18 | 1.5 | 14.7 | 0.6 | 2.7 | 2.9 |
| 2f | 37 | 0.26 | 1.8 | 9.5 | 0.6 | 3.0 | 3.4 |
| 3f | 61 | 0.26 | 2.4 | 5.76 | 0.7 | 3.8 | 4.1 |
PVC automotive cable
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JASO D 611-94.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.3 | 7 | 0.26 | 0.8 | 50.2 | 0.6 | 1.8 | 1.9 |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.5 | 2.0 | 2.1 |
| 0.85 | 11 | 0.32 | 1.2 | 20.8 | 0.5 | 2.2 | 2.3 |
| 1.25 | 16 | 0.32 | 1.5 | 14.3 | 0.5 | 2.5 | 2.6 |
| 2 | 26 | 0.32 | 1.9 | 8.81 | 0.5 | 2.9 | 3.1 |
| 3 | 41 | 0.32 | 2.4 | 5.59 | 0.6 | 3.6 | 308 |
| 5 | 65 | 0.32 | 3.0 | 3.52 | 0.7 | 4.4 | 4.6 |
| 0.3f | 15 | 0.18 | 0.8 | 48.9 | 0.5 | 1.8 | 1.9 |
| 0.5f | 20 | 0.18 | 1.0 | 36.7 | 0.5 | 2.0 | 2.1 |
| 0.75f | 30 | 0.18 | 1.2 | 24.4 | 0.5 | 2.2 | 2.3 |
| 1.25f | 50 | 0.18 | 1.5 | 14.7 | 0.5 | 2.5 | 2.6 |
| 2f | 37 | 0.26 | 1.8 | 9.5 | 0.5 | 2.9 | 3.1 |
PVC automotive cable with thin wall insulation
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare. Conductor construction according to JASO D 611-94.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.3 | 7 | 0.26 | 0.8 | 50.2 | 0.3 | 1.4 | 1.5 |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.3 | 1.6 | 1.7 |
| 0.85 | 19 | 0.24 | 1.2 | 21.7 | 0.3 | 1.8 | 1.9 |
| 1.25 | 19 | 0.29 | 1.5 | 14.9 | 0.3 | 2.1 | 2.2 |
| 2 | 37 | 0.26 | 1.8 | 9.5 | 0.4 | 2.6 | 2.7 |
| 0.3f | 19 | 0.16 | 0.8 | 48.9 | 0.3 | 1.4 | 1.5 |
| 0.5f | 19 | 0.19 | 1.0 | 34.6 | 0.3 | 1.6 | 1.7 |
| 0.75f | 19 | 0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 |
| 1.25f | 37 | 0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 |
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,
Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom
cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,
braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach
to develop better cables for customers and improve the quality of one's life.
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
